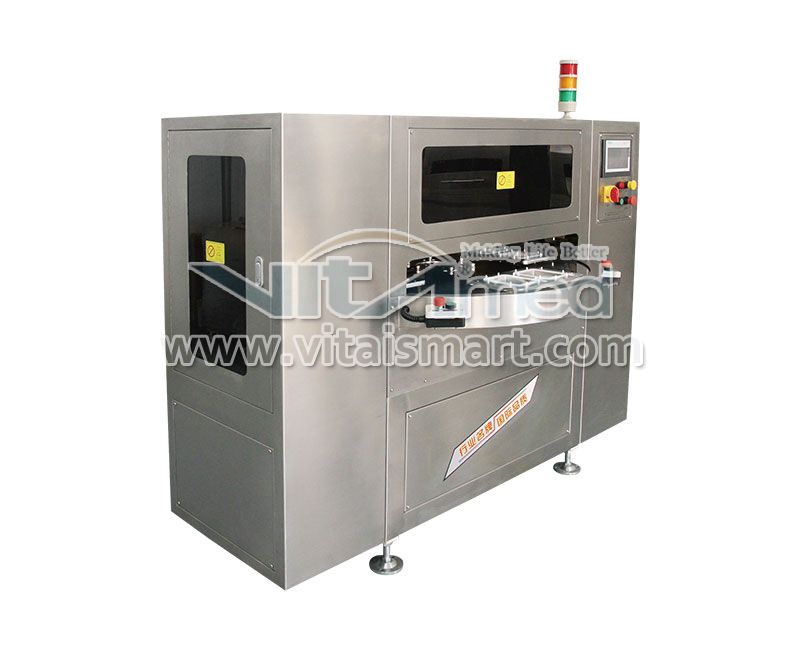

Automatic Packaging Machine
Application:

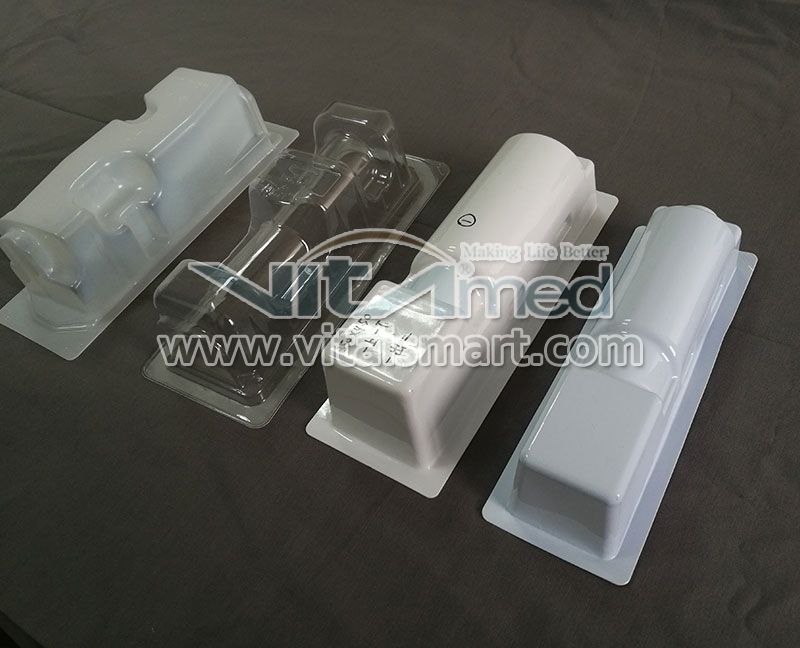

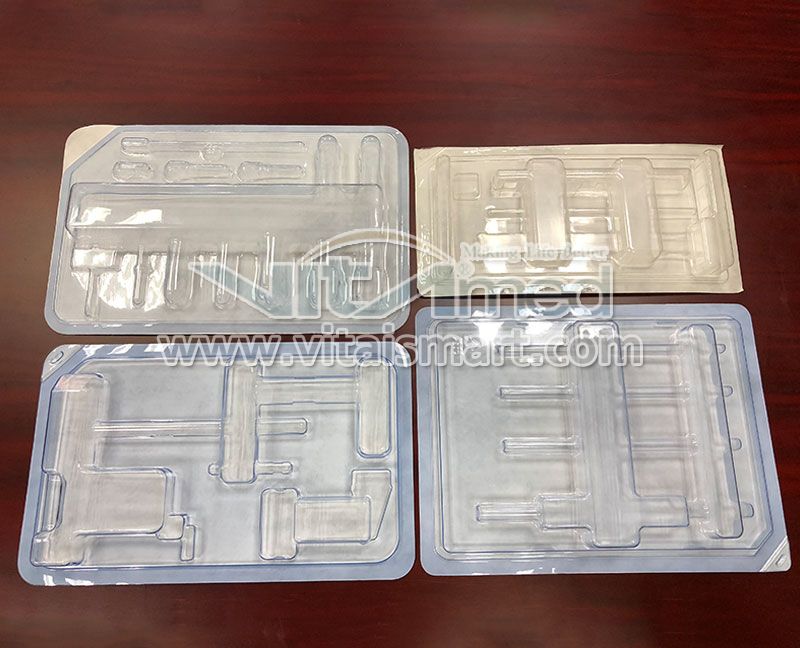

Sealing PETG/PET/PS/PP Blister + Top Cover (Tyvek, Aluminium Foil, etc)
Product Features
Features:
1. Automatic feeding top cover, automatic sealing and automatic discharging
2. Higher automation, higher efficiency

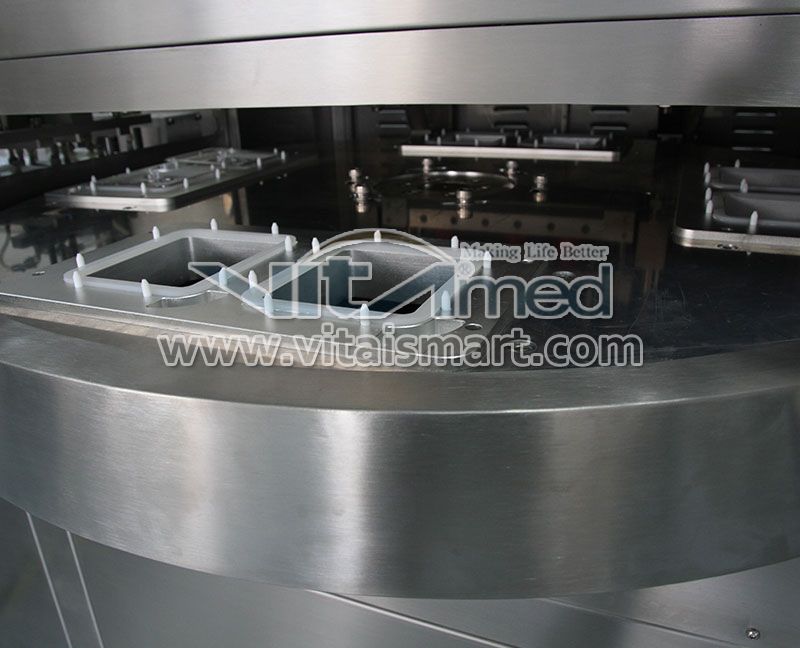

3. Rotary table structure, save labor
Main Specification
Main Technical Parameters:
| Model | VTS-P02 |
| Version | Mechanical Type ( M ), PLC Type ( P ), Computer Type ( C ) |
| Output Power | 3.6 KW |
| Voltage | Customized |
| Pressure Mode | Pneumatic, ≤0.6MPA |
| Slide Mode | Automatic / Manual |
| Heating Plate Size | 200mm*300mmmm |
| Max.sealing Size | 150mm*250mm |
| Net Weight | 1200KG |
| Production Capacity | 10 cycles per minute, depend on the operator’s experience (eg:2pcs/die, 4000pcs/h) |
| Overall Dimension | L1810mm*W1200mm*H1450mm |
| Note: All machines can be customized. | |
