1.Standards of manufacture and sizes
EO sterilizer is designed, manufactured and verified complying with follow standards:
Standards of manufacture: European standard EN1422;
2. Inner size of the sterilizer
6m3: length (2.80m), width (1.35m), height (1.70m), actual volume 6.43m3
15m3: length (6.75m), width (1.35m), height(1.70m), actual volume 15.49m3
20m3: length (9.00m), width (1.35m), height (1.70m), actual volume 20.66m3
With more than ten years of development, VITAIMED has established good cooperation relationship with global medical partners, providing high-quality medical products and services for global medical partners.
Product Features
1. Reliability of the main components: The main components (SCADA software, industrial computer, vacuum pump, circulation pump, air compressor, cylinder, chamber seal system, temperature/humidity/pressure sensors) can run at least 500 circles of sterilization as normal.
2. Automatically opening and closing. Range of pressure: -80Kpa to +80Kpa; the working voltage is 3-phase 380V±10%, frequency 50Hz. If the voltage and frequency of the user’s place are different from China, the user takes care of converter.
3. Material: SUS304 stainless steel inside, 430 stainless steel wire-drawing board outside, channel steel (carbon steel) for water jacket, carbon steel for door seal flange; the triangle steel on the doors, water tank, drain bucket, vaporizer and all the pipes of the sterilizer which contact with EO gas and steam, use stainless steel.

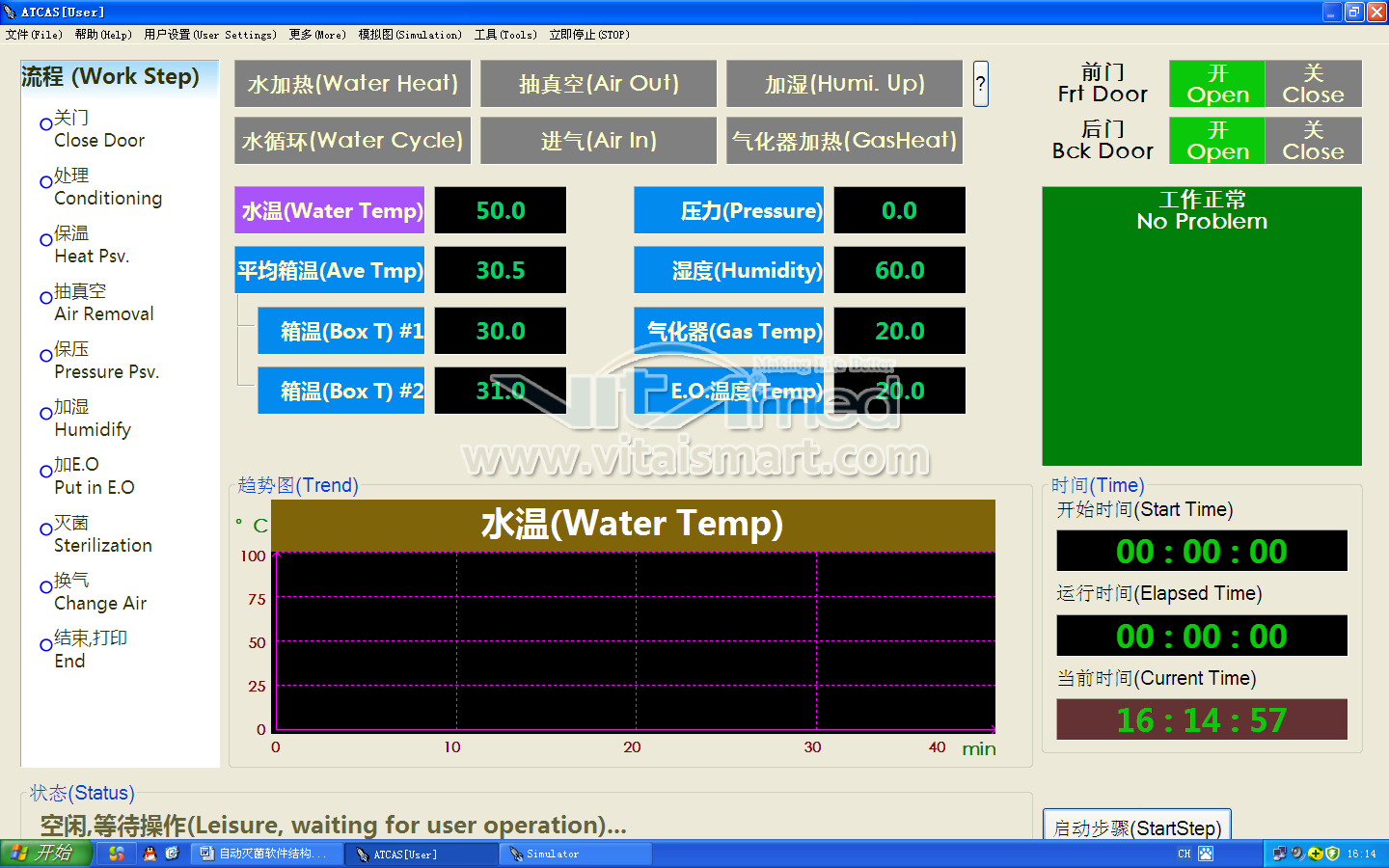

4. Control system: automatic control by industrial control computer and PLC. The parameters can be recorded, stored, exported and printed. All the documents of the computer interface are both Chinese and English.
5. The user takes care of loading tools and validation of sterilization.
Main Specification
灭菌器配置清单List of components of EO Sterilizer
灭菌器主要系统及部件 Major systems | ||
名称 Name | 品牌与型号 Brand & Model | 备注 Remarks |
真空系统 Vacuum-system | 自主研发 | 1套 |
热水循环系统（含水箱） Water heating system(water tank) | 自主研发 | 1套 |
加湿系统 Humidification system | 自主研发 | 1套 |
气化系统 Gasification system | 自主研发 | 1套 |
气动系统（含空压机） Pneumatic system (air compressor) | 自主研发 | 1套 |
特殊密封系统 Sealing system | 自主研发 | 1套 |
残气处理系统 Residual gas treatment system | 自主研发 | 1套 |
灭菌室 Chamber | 自主研发 | 1套 |
电气控制系统 Electrical Control System | 自主研发 | 1套 |
产品合格证及随机资料 Certificate and Manual | 自主研发 | 1套 |
