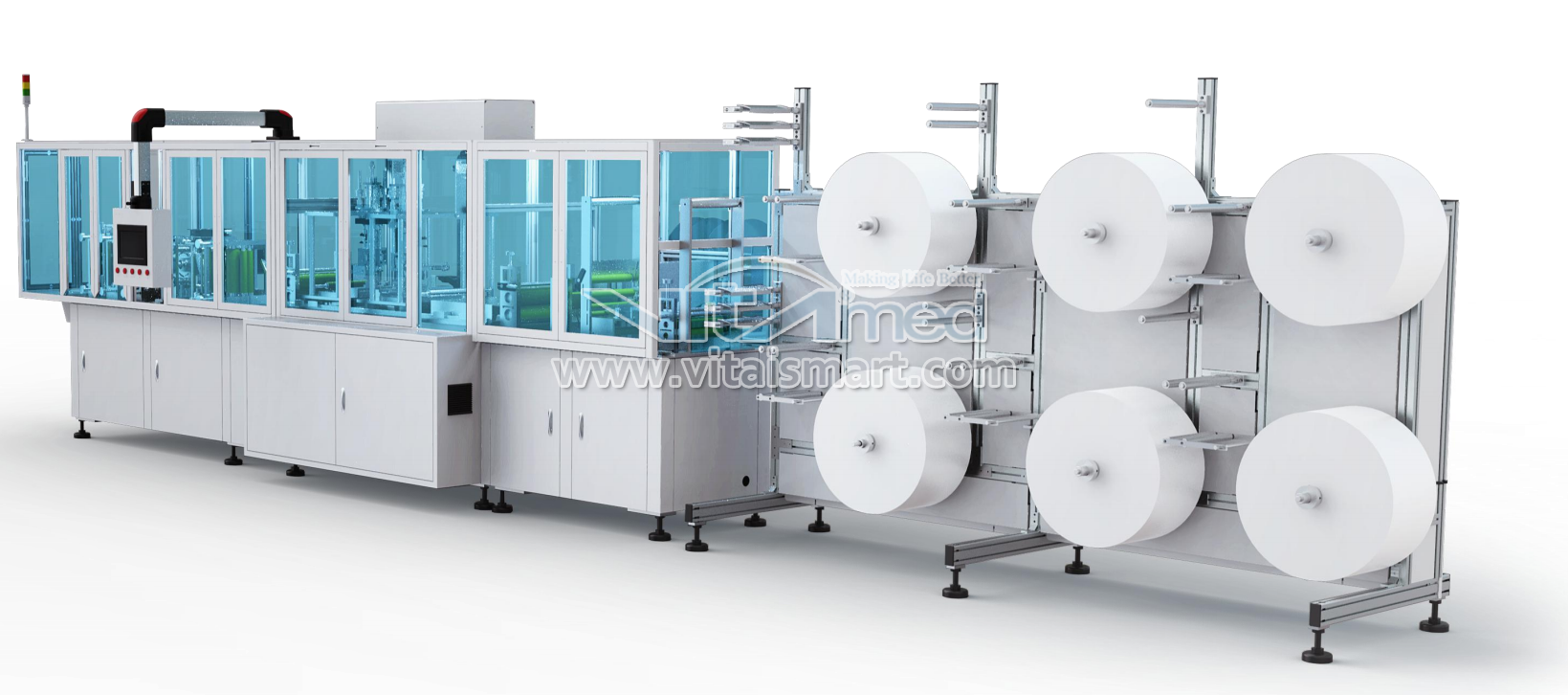

The production line is suitable for the N95 mask(4-6layers)with outer ear loop.
Mask size:23.8×12.8cm
With more than ten years of development, VITAIMED has established good cooperation relationship with global medical partners, providing high-quality medical products and services for global medical partners.
Product Features
Technical Data
Item | Parameter | Item | Parameter |
Power | 12 KW | Voltage | 380 V , 50-60 Hz |
Pressure | 0.5-0.7 Mpa | Output | 40pcs/min |
Machine size | 870mm×950mm×2000mm | Weight | 2T |
Number of operators | 1 | Qty/time | 1 |
Qualification rate | ≥96% | ||
Note：All the components should be qualified.
Hardware
Item | Name | Brand |
1 | PLC System | Keyence |
2 | Servo system | Panasonic |
3 | Photo electric sensors | Leuze |
4 | Pneumatic components | SMC |
5 | Touch screen | Pro-face |
6 | Ultrasonic welding(4SETS) | Famous Chinese brand 20KHz,1.8KW |
