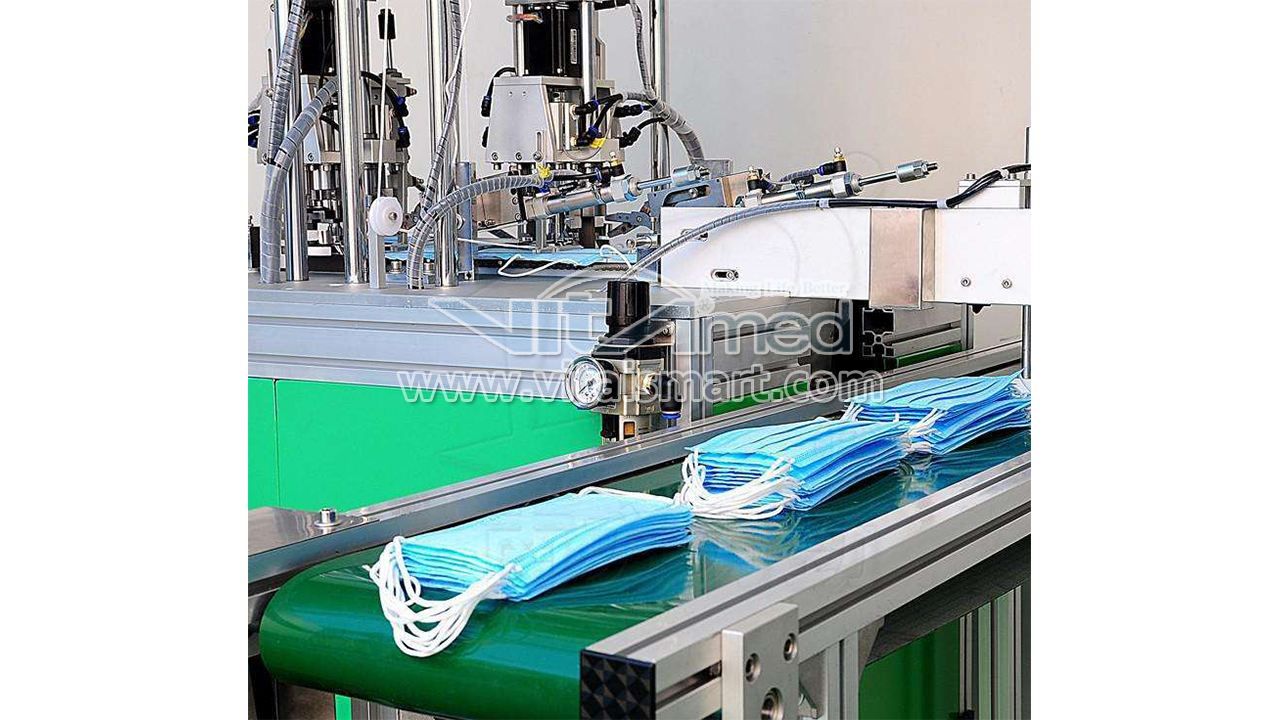

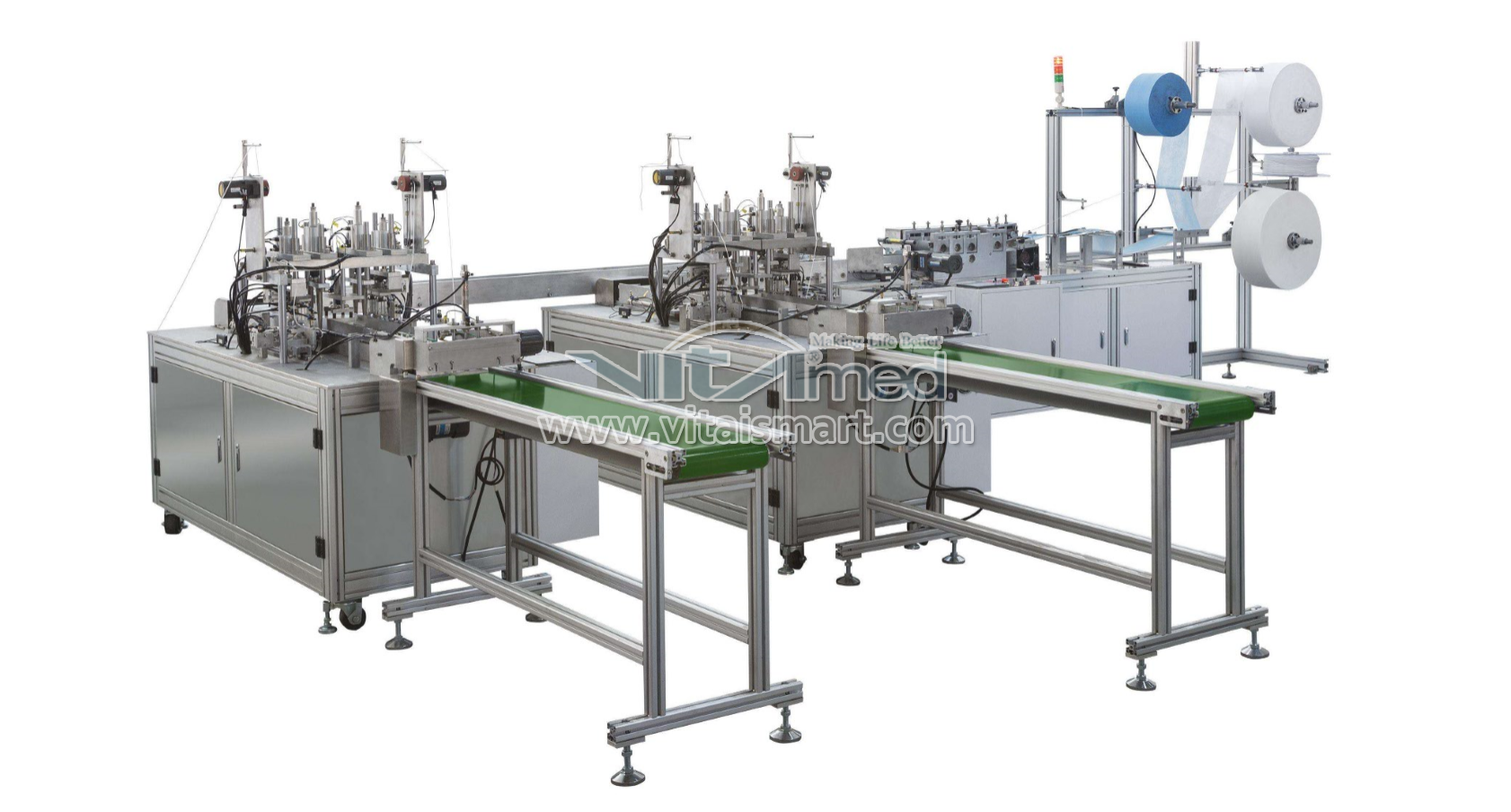

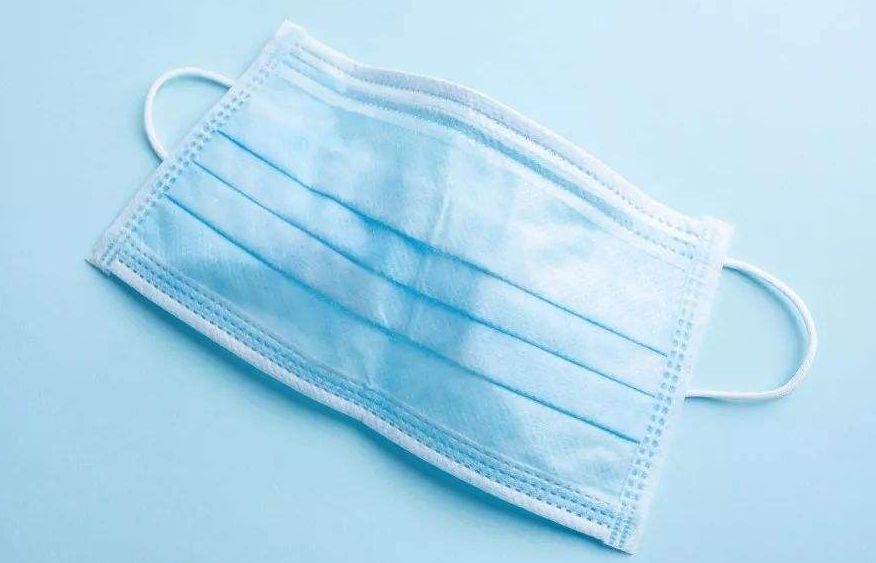

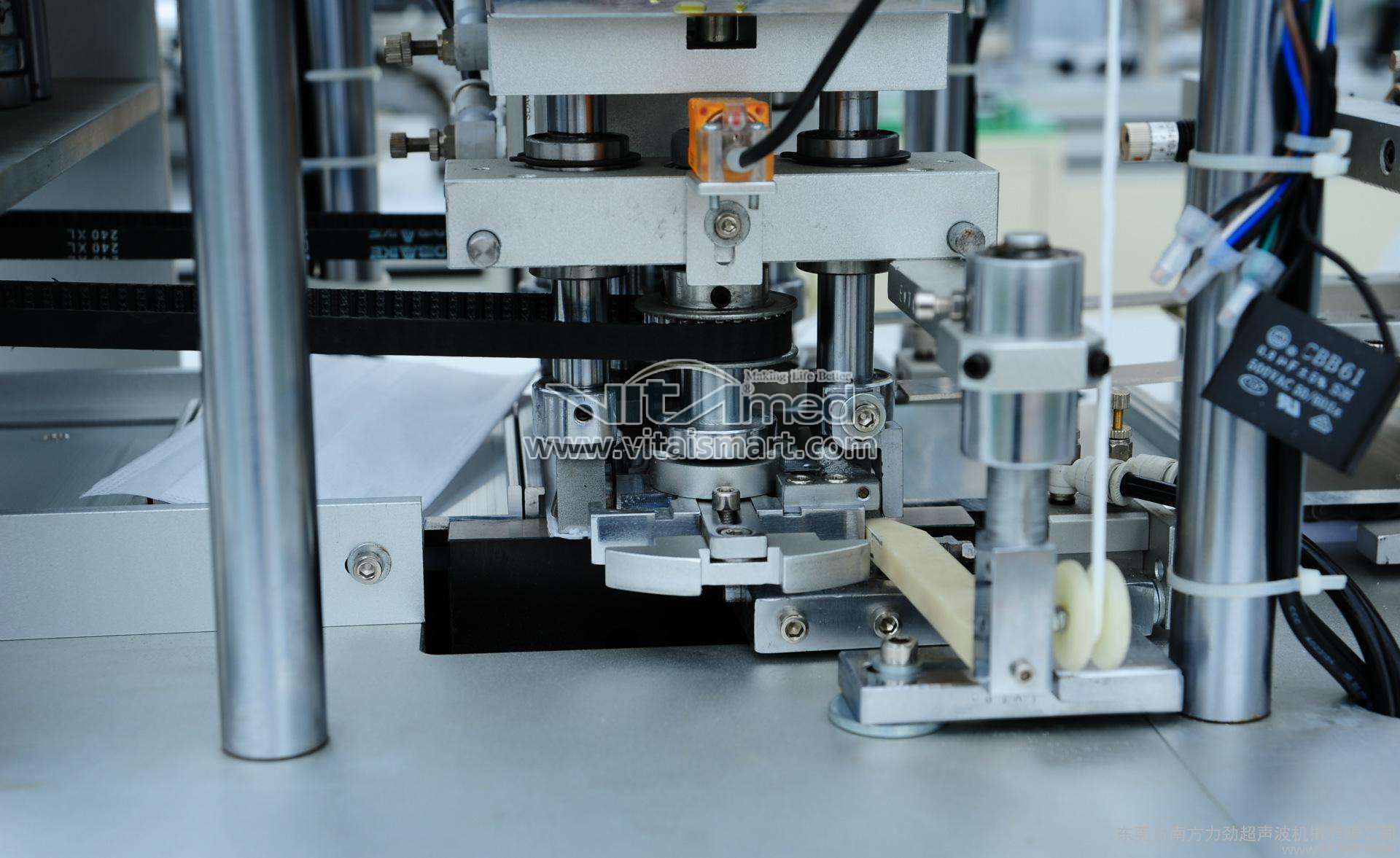

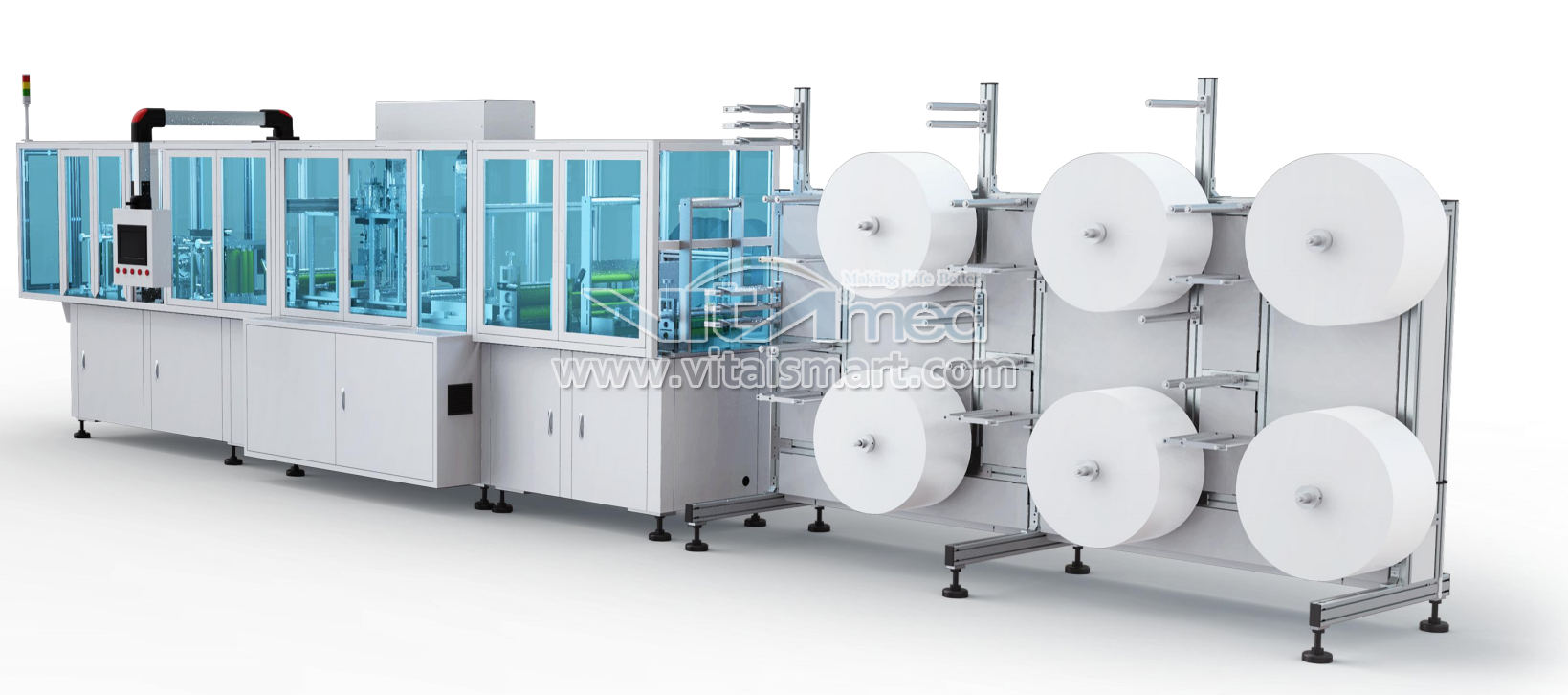

The automatic production line of disposable face masks includes automatic processes such as roll material feeding, nose bridge clip feeding, mask forming, ear wire welding, and finished product blanking. Applicable mask types: surgical masks, ordinary medical masks and 2-4 layers of PP non-woven fabric and composite fiber material masks.
With more than ten years of development, VITAIMED has established good cooperation relationship with global medical partners, providing high-quality medical products and services for global medical partners.
Product Features
Technical Data
Item | Parameter | Item | Parameter |
Power | 12 KW | Voltage | 380 V , 50-60 Hz |
Pressure | 0.5-0.7 Mpa | Output | 40pcs/min |
Machine size | 4850×2860×2200mm | Weight | 1.6T |
Number of operators | 2 | Pcs/min | 70-100 |
Qualification rate | ≥99% | ||
Hardware
Item | Name | Brand |
1 | PLC System | Keyence |
2 | Servo system | Panasonic |
3 | Photo electric sensors | Leuze |
4 | Pneumatic components | SMC |
5 | Touch screen | Pro-face |
6 | Ultrasonic welding(4SETS) | Famous Chinese brand 20KHz,1.8KW |
